GLD series A feeder is a new type of feeder which is developed for large production system with high yield and GAO Efficiency and the current feeder can no longer meet the requirem...
GLD4000/11 /S A gives an overview of the feeder
GLD series A feeder is a new type of feeder which is developed for large production system with high yield and GAO Efficiency and the current feeder can no longer meet the requirements of coal mine production. On the basis of K type reciprocating and vibration type feeder, the reciprocating movement mechanism is changed into conveyor belt type mechanism, which changes the feeding movement from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of GAO efficiency, energy saving and environmental protection.
GLD4000/11 /S A brings the technical parameters of the material machine
Power kw: 11
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Zui large feed quantity T /h: 4000
Zui large belt speed m/s: 1.5
External dimension mm: 4052 x 1622x2338

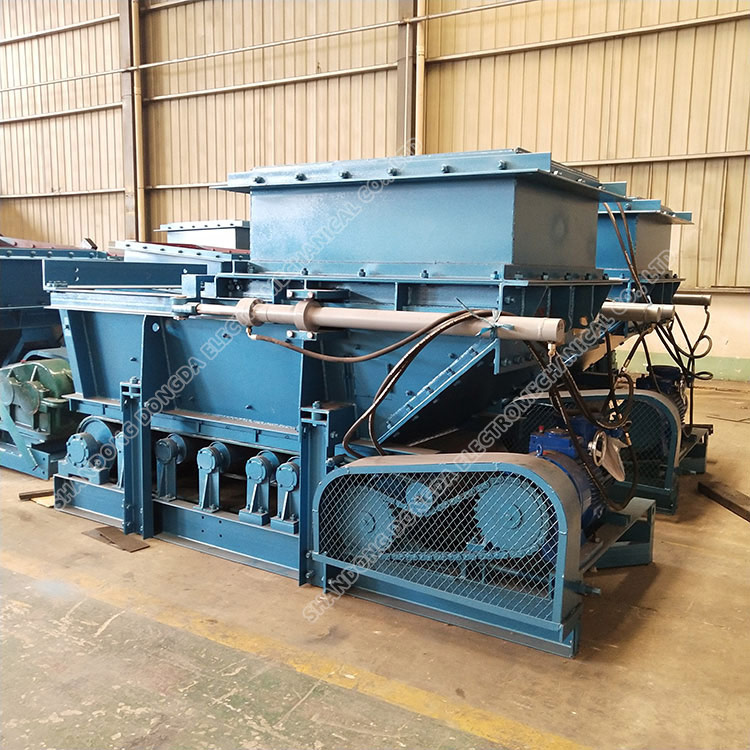

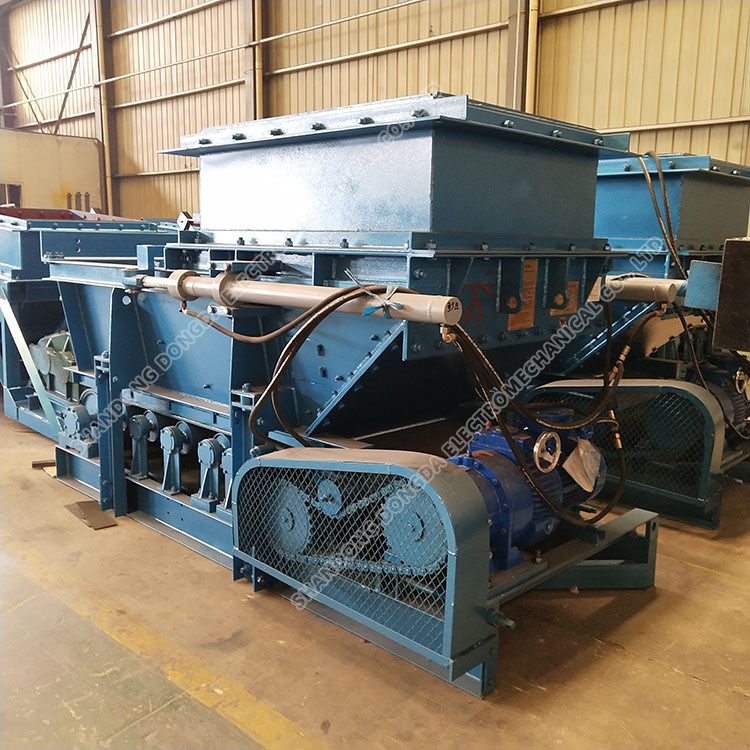

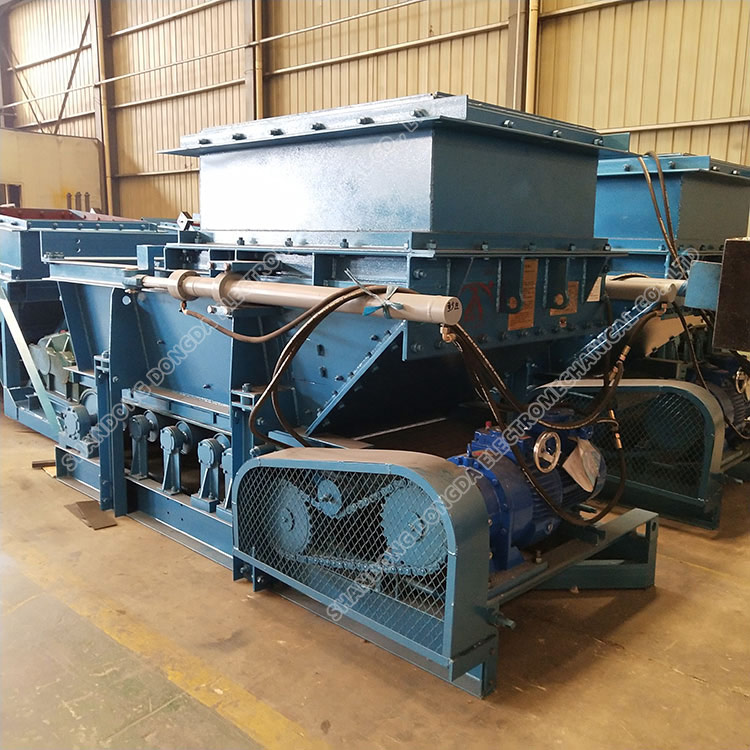

GLD4000/11 /S A brings the physical drawing of the material machine
