GLD2200/7.5 /B belt feeder

Armour to machine is widely used in coal, metallurgy, electric power and other industries a variety of feed bin, to turn the continuous feeding way, a...

  • Tel:86-537-2902388
  • Mobile:+8618053706580
  • Email:sales@dongdamachinery.com
Product Recommendation
Product Introduction

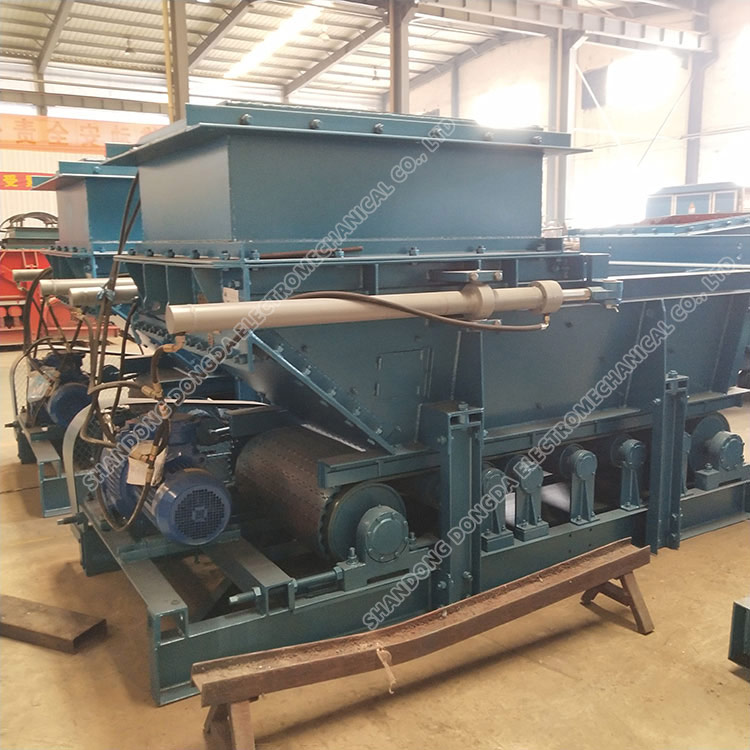

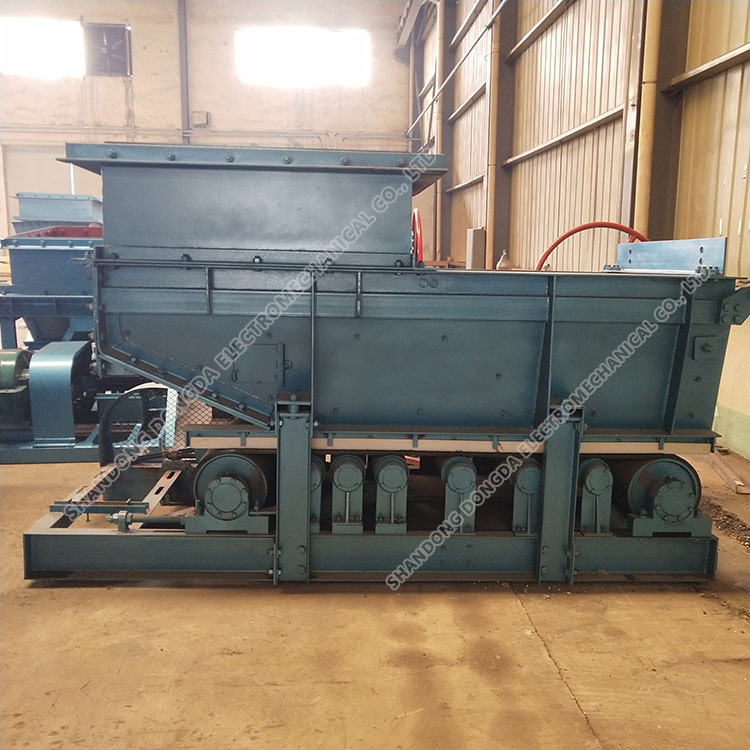

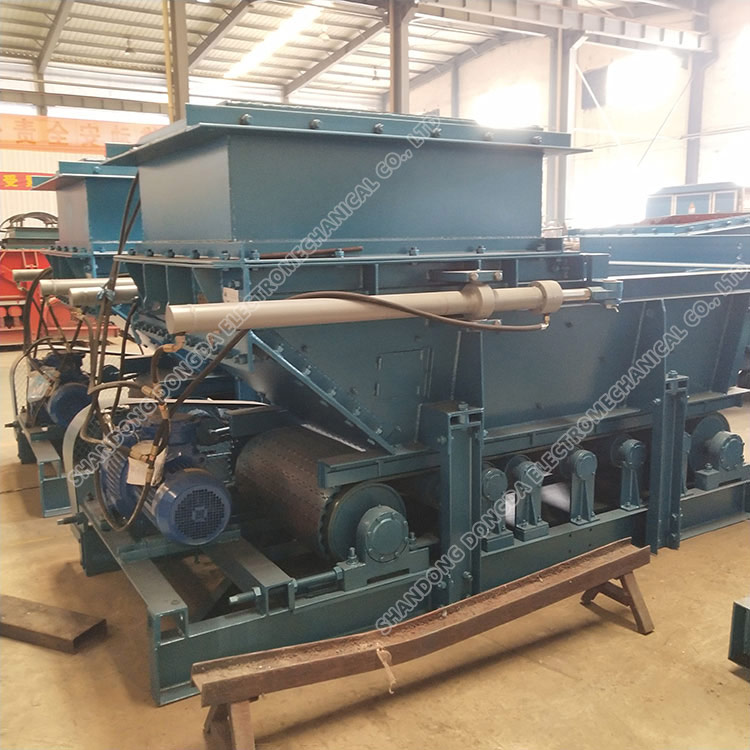

GLD2200/7.5 /B belt feeder product introduction

Armour to machine is widely used in coal, metallurgy, electric power and other industries a variety of feed bin, to turn the continuous feeding way, according to user need not stop can be adjusted (manual adjustment or hydraulic cylinder adjustment), a bring coal feeding system can meet the requirements of high efficiency, energy saving, environmental protection, more durable than belt feeder.

In addition to the production of GLD series standard a to the coal machine, but also the production of non-standard, elongated a to the coal machine.

GLD2200/7.5 /B belt feeder technical parameters

Specification: GLD2200/7.5/B

Power kw: 7.5

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Maximum feed t/h: 2200

Maximum band speed m/s: 0.98

External dimension mm: 3683x1605x1868

Weight: 4100

GLD2200/7.5 /B Belt Feeder Installation Instructions

A feeder can be installed separately or as a whole on site. During the separate installation, the funnel frame shall be installed at the bunker mouth, then the box body, and then the bottom frame and other components shall be installed. In the overall installation, the funnel stand should be installed at the bunker mouth first, and then after all other components are assembled, the overall hoisting and connection section should be connected with bolts.

GLD2200/7.5 /B Belt feeder
