Product Introduction

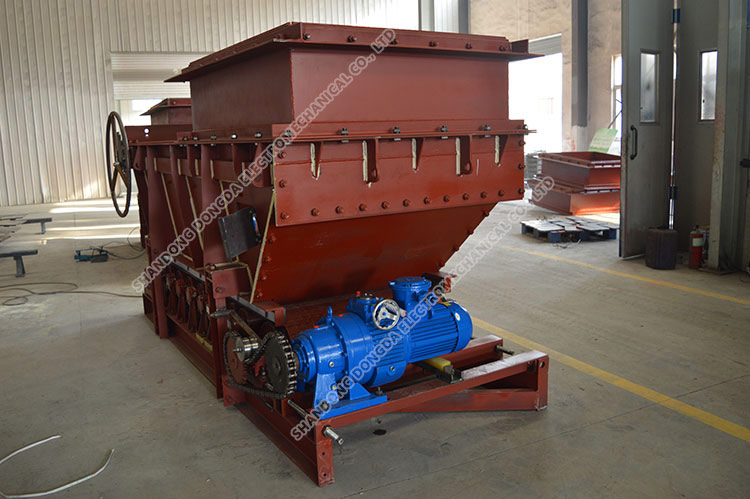

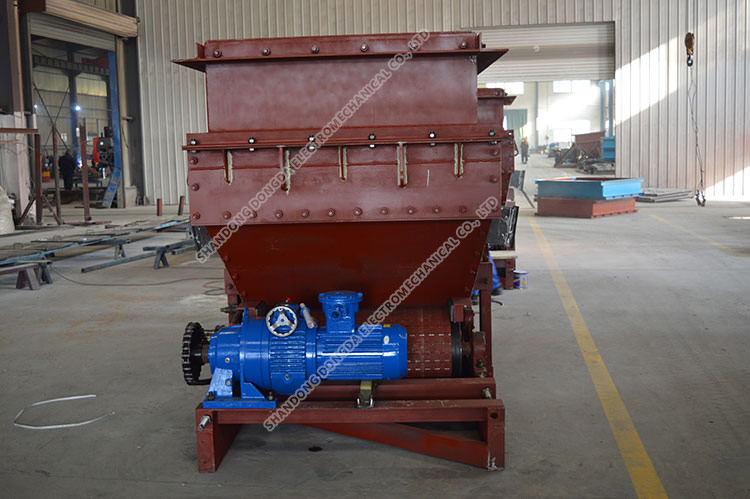

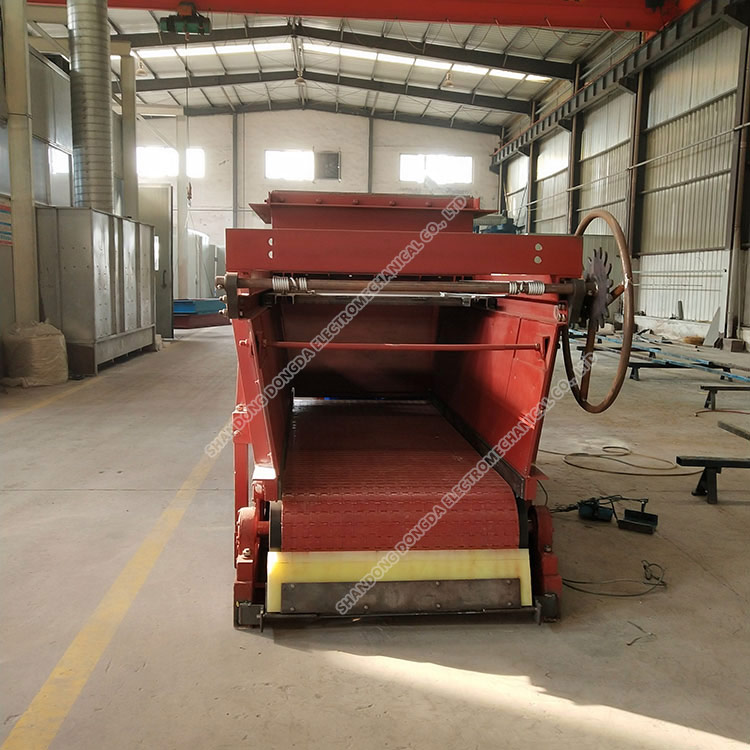

GLD330/7.5 /B Belt feeder structure

The coal feeder is a hanging feeding machine. The whole machine is suspended and fixed at the mouth of the bunker through the funnel frame. The box body is installed below the box body and the feeding device is installed below the box body. The feeding device is composed of driving drum, buffer roller, reversing drum, belt, rubber belt, sweeper, etc. The driving device is driven by the mechanical stepless variable speed machine through the chain driving the driving drum rotation, feed machine coal flow from the two sides of the board enclosed box outlet. The feeding device and driving device are mounted on the bottom frame. A gate device and a drive handle are arranged on the box body to shut off the coal flow when the feeder is stopped.

Characteristics of GLD3300/7.5/B belt feeder

1. Low power, low energy consumption and good economic performance;

2. Large feeding quantity, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;

3. Large feeding adjustment range, easy to adjust (stepless speed regulation);

4. The moving part has low working resistance, low power consumption and long working life.

5. Smooth operation, low noise, environmental protection;

6. Parts are universal, easy to install and maintain.

In addition to the production of GLD series standard a to the coal machine, but also the production of non-standard, elongated a to the coal machine.

GLD3300/7.5 /B belt feeder technical parameters

Specification: GLD330/7.5 /B

Power kw: 7.5

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Maximum feed t/h: 3300

Maximum band speed m/s: 0.98

External dimension mm: 4052x1622x2338

Weight: 5000
