Product Introduction

Introduction to KQP75 Air Gun

KQP series air cannon is a new patented product which is designed and developed for anchoring of materials in silos. In coal, power, cement and other industries, there are widespread defects in material blocking, to improve the flow of materials in the silo, to solve the problem of silo blocking, it is necessary to assemble advanced, ideal arch breaking equipment. KQP series air cannons produced by our company have been used by many units in coal, electric power, cement and other industries. The air cannons' various performance indexes have been greatly improved compared with similar products, with good blocking clearance effect, high degree of automation and minimal maintenance work, which have been well received by users.

The KQP75 air gun consists of a structure

KQP series air gun is mainly composed of air gun host, air gun air circuit system and air gun electronic control system

KQP series air gun is composed of hoop frame and tank body

KQP series air gun air system is mainly composed of air supply pipeline, two-position three-way pneumatic solenoid directional valve, ball valve (used to cut off air source and drain water during maintenance) and connecting pipe fittings

KQP75 Air gun works

KQP series air gun is by using the theory of aerodynamics, the use of a differential device and electric control of pneumatic battery reversing valve, tanks filled with compressed air to air cannons and reach the work pressure, pneumatic solenoid directional control valve is shut down again to the air cannon tanks of compressed air in an instant, have a powerful impact, realize to unblock, broken arch. The KQP series air cannons can also be operated with manual valves for aeration and arch breaking.

KQP75 Air gun performance characteristics

1. The air cannon of the bin in the mixing station can act directly on the material, with high clogging clearance efficiency;

2. Easy installation and maintenance;

3. Simple control, automatic control or manual operation control;

4. Long service life, normal use up to 1 million times;

5. Fast release speed, strong impact force and significant blocking clearance effect;

6. Low noise, lower than the noise standard of industrial enterprises;

7. Other types of air cannons in use can be replaced.

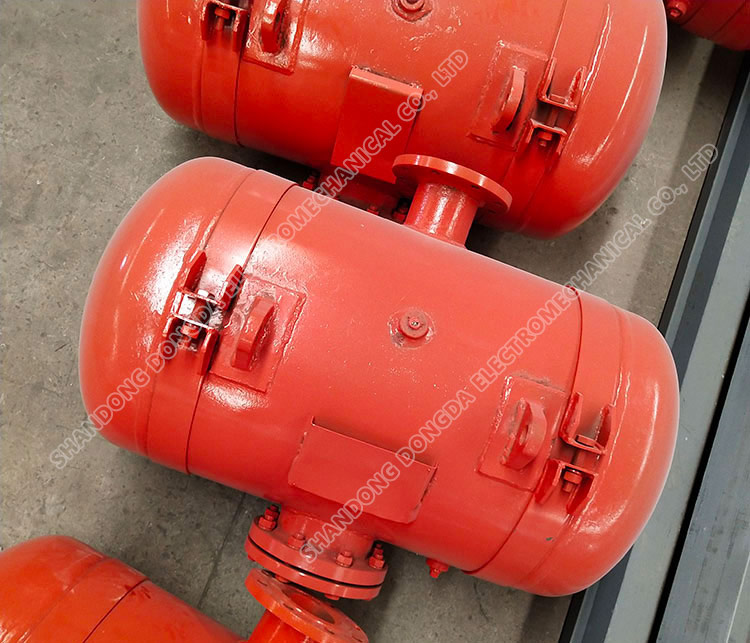

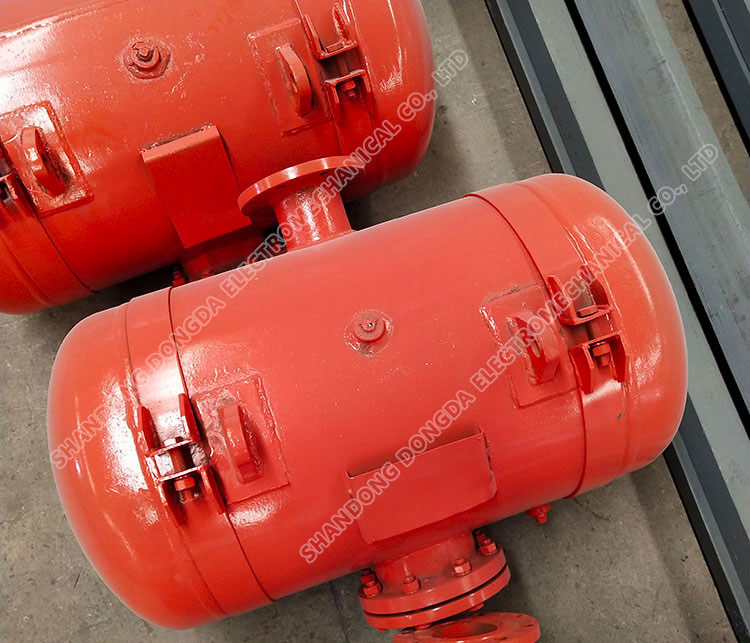

Physical picture of KQP75 air gun
