Introduction to KQP300 Arch Breaker
KQP series arch breaker is a new type of product which is designed and developed for the retention of arch in the material bin. In coal, power, cement and other industries, there are widespread defects in material blocking, to improve the flow of materials in the silo, to solve the problem of silo blocking, it is necessary to assemble advanced, ideal arch breaking equipment. KQP series arch breaker manufactured by our company has been used by many units in coal, electric power, cement and other industries. The performance indexes of arch breaker have been greatly improved compared with similar products, with good blocking clearance effect, high degree of automation, and minimal maintenance work, which has been well received by users.
KQP300 arch breaker is composed of structure
KQP series of arch breaker is mainly composed of arch breaker host, arch breaker air circuit system and electronic control system
KQP series arch breaker is composed of hoop frame and tank body
KQP series arch breaker air circuit system is mainly composed of air supply pipeline, two-position three-way pneumatic solenoid directional valve, ball valve (used for cutting off air source and drainage during maintenance) and connecting pipe fittings
KQP300 arch breaker working principle
Broken GongQi KQP series is the use of aerodynamics, the use of a differential device and electric control of pneumatic battery reversing valve, be the first to break the GongQi tanks filled with compressed air and reach the work pressure, pneumatic solenoid directional control valve is closed to the broken again GongQi tanks of compressed air in an instant, have a powerful impact, realize to unblock, broken arch. KQP series arch breaker can also be operated with manual valve for aeration and arch breaking.
KQP300 arch breaker performance characteristics
1. The arch breaker of the bin in the mixing station can act directly on the material, with high clogging clearance efficiency;
2. Easy installation and maintenance;
3. Simple control, automatic control or manual operation control;
4. Long service life, normal use up to 1 million times;
5. Fast release speed, strong impact force and significant blocking clearance effect;
6. Low noise, lower than the noise standard of industrial enterprises;
7. Can replace other types of existing arch breakers.

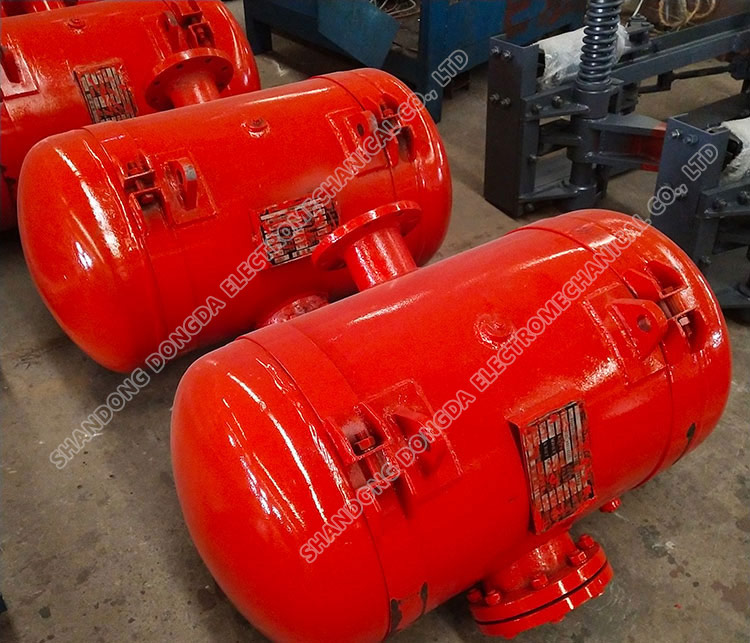

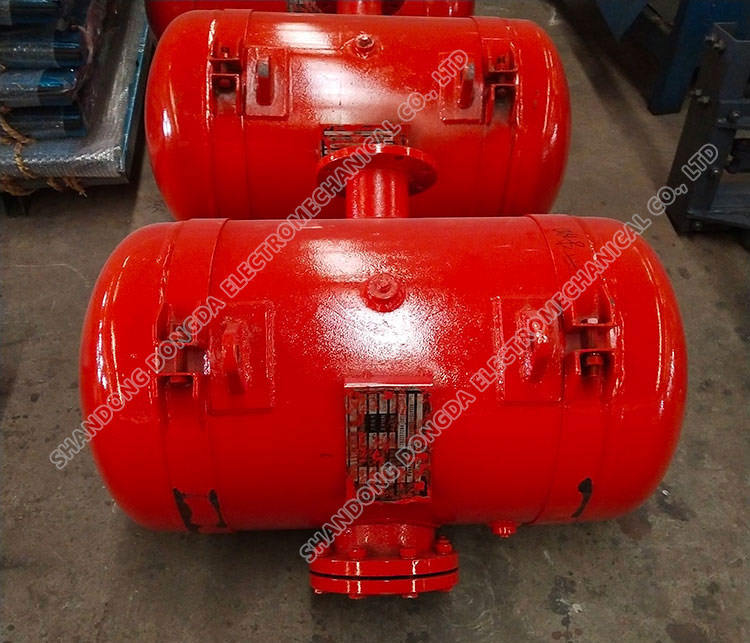

Physical picture of KQP300 arch breaker
