Pin - tooth type cart machine introduction

Pin tooth push cart machine is a kind of can realize claw into the pot trolley cart equipment, widely used in cage wellhead and underground station job, fuck the car into the tank to complete loading, unloading, with cars, cars, and other operations, the wellhead mechanized operation car, at the same time, the device also has the characteristics of beautiful, dustproof, easy installation and maintenance.

Operating principle of mechanical part of pin - tooth cart machine

(1) Pin-Gear trolley is composed of a series of pin-gear trolley that can run on the track. The whole set of device adopts hydraulic power, and the pin-gear rotation is directly driven by low-speed and high-torque hydraulic motor, and then the pin-gear transmission is used to realize the pin-gear operation.

(2) through the control of the hydraulic motor forward and reverse, can realize the forward and backward pin car, pin car itself can be in the lower car through, pin car is installed in the implementation of the operation of the car push claw and pull claw, push claw and pull claw in the car along the direction of the car knocked over.

(3) Push claw to carry out the function of cart into the tank or out of the tank, the place of cart is the meeting of harvesters.

(4) pull the claw to perform the transfer harvesters function, transfer harvesters, the claw device and after the car block linkage, pull the claw lift, pull car parts for the harvesters baffle or axle.

Pin gear type cart machine parameters:

Product model: DXY

Power type: electro-hydraulic power

Motor power: 7.5 KW / 11 KW / 15 KW / 22 KW / 30 KW (according to the scene matching)

The rated thrust: 6 KN / 10 KN / 15 KN / 23.5 KN / 35 KN (corresponding) and motor power

Working pressure of hydraulic system: 16MPa

Hydraulic medium: wear-resisting hydraulic oil above 46#

Cart speed: 0.5m/s ~ 1m/s

Maximum number of carts (sets) : 20-60 (determined according to operating conditions)

Cart position: harvester baffle, axle or meet

Number of carts per order: please specify when ordering

Gauge (mm) : 600 or 900, please specify when ordering

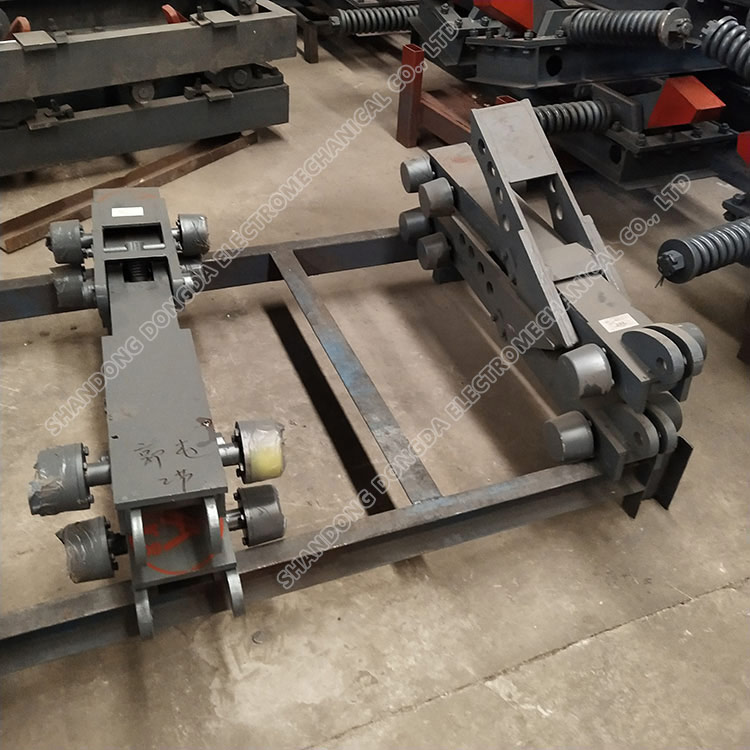

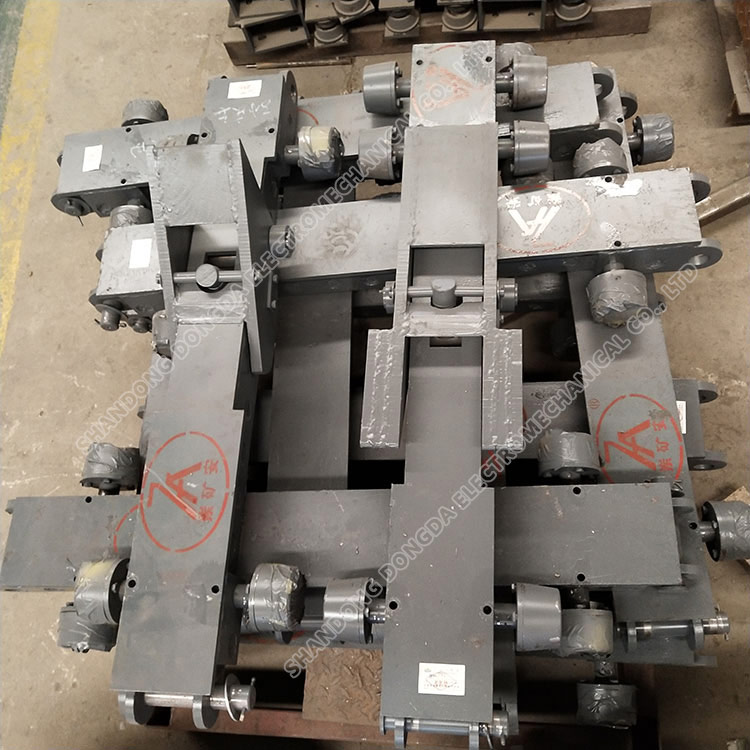

Pin tooth type cart machine physical drawing
