Chain cart is mostly installed in shaft head, drift and small slope transportation lane to realize the function of pushing and pulling harvesters in s...
Introduction to chain cart machine
Chain cart is mostly installed in shaft head, drift and small slope transportation lane to realize the function of pushing and pulling harvesters in short distance.
Operating principle of mechanical part of chain cart machine
(1) The trolley is powered by a hydraulic motor with low speed and large torque. The hydraulic motor drives the chain wheel of the trolley to rotate backwards and forwards. The chain wheel further drives the chain drive, and the chain traction push claw or pull claw realize the function of pushing and pulling harvesters.
(2) Push claw to carry out the function of the cart, the place of the cart is the meeting of the mining car.
(3) pull jaw to carry out the function of car transport, transport car, pull jaw lifted, pull car parts for the car baffle or axle.
Chain cart parameters
Product model: TLY
Motor power: 7.5 KW / 11 KW / 15 KW / 22 KW / 30 KW (according to the scene matching)
The rated thrust: 6 KN / 10 KN / 15 KN / 23.5 KN / 35 KN (corresponding) and motor power
Working pressure of hydraulic system: 16MPa
Hydraulic medium: wear-resisting hydraulic oil above 46#
Cart speed: 0.5m/s ~ 1m/s
Maximum number of carts (sets) : 20-60 (determined according to operating conditions)
Cart position: harvester baffle, axle or meet
Number of carts per order: please specify when ordering
Gauge (mm) : 600 or 900, please specify when ordering

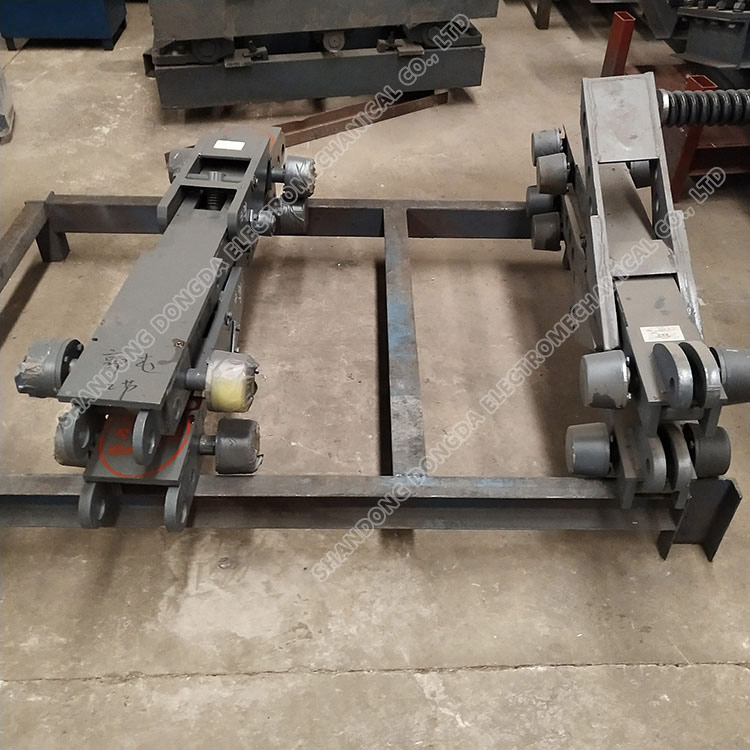

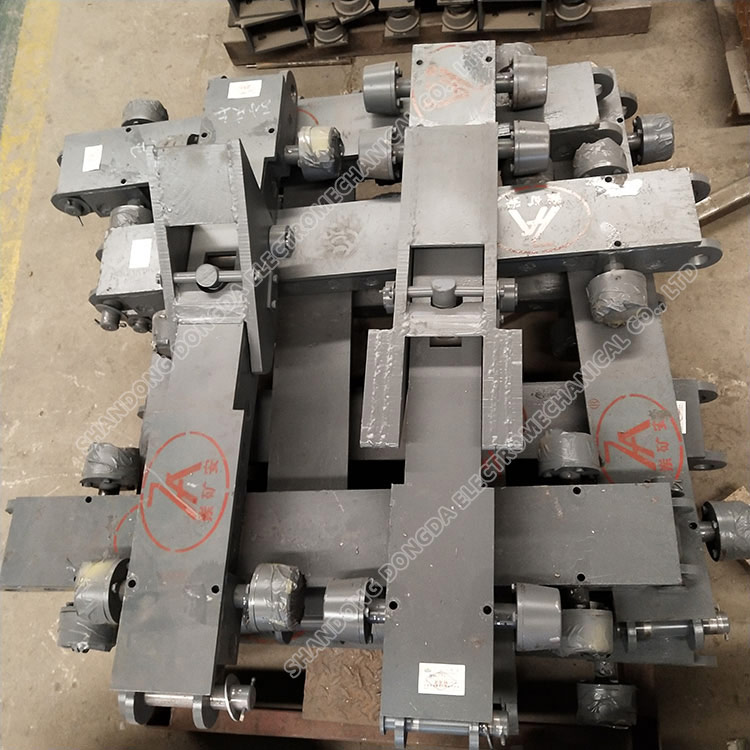

Physical picture of chain trolley
