Product Introduction

Tank wheel introduction

The tank track wheel is a kind of tank lug used for vertical shaft lifting container. Combined with the characteristics of mines in China, the roller drum ear provides convenient conditions for the replacement of the new roller guide device for the lifting vessel in operation, which is widely used in mines, coal and other industrial production departments. The friction between the canisters and the canisters changes from sliding friction to rolling friction, thus reducing power consumption, reducing noise, and greatly reducing wear of the canisters and canisters. Thus, the service life of canister canal and canister ear is increased.

The action principle of the pot road wheel is that the force of the roller is exerted on the disc spring by bracket, adjusting sleeve, adjusting screw and disc spring shaft, and the buffer is realized by releasing the upper and lower movement of disc spring shaft and compressing the disc yellow group.

Main model parameters of tank track wheel

model


Roller diameter mm

Maximum horizontal force KN

Buffer stroke mm


Single wheel


L25

250

12

10~14


L30

300

16

L35

350

24

L42.5

425

33

L45

450

35

L50

500

36

double


LS30

300

20

LS35

350

28

LS42.5

425

42

LS45

450

44

LS50

500

45

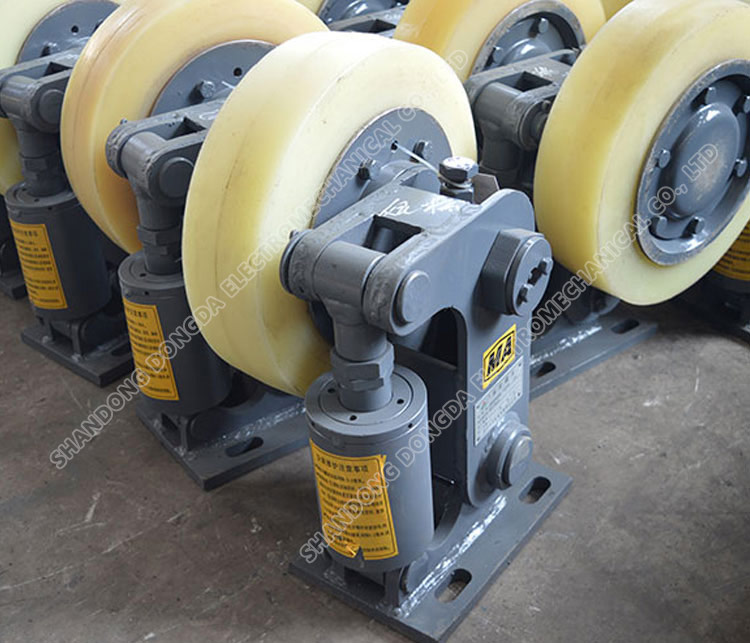

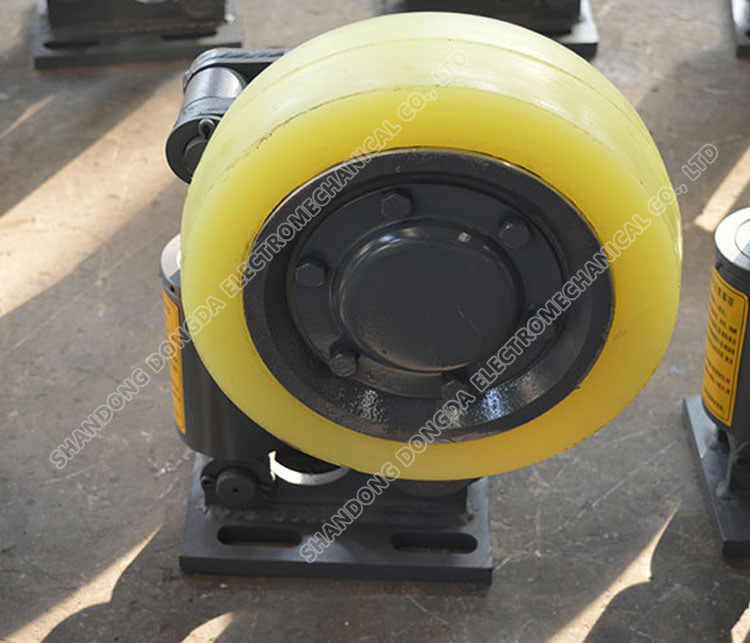

Physical picture of tank wheel
