Introduction of GLD2200/7.5/S weighing coal feeder
Gld2200/7.5 /S weighing coal feeder is a new type of coal feeder developed for the large production system with high yield and high efficiency. Based on the K type reciprocating feeder, this product changes the reciprocating mechanism into conveyor belt mechanism, thus the feeding motion changes from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.
Technical parameters of GLD2200/7.5/S weighing coal feeder
Power kw: 7.5
Voltage V: 380 ~ 660
Adaptability to environment: explosion-proof type
Maximum feed t/h: 2200
Maximum band speed m/s: 0.98
External dimension mm: 3683x1605x1868
Main wearing parts of GLD2200/7.5/S weighing coal feeder
Driving drum 2, reversing drum 3, transmission chain 4, heavy buffer roller 5, coal scraper 6, wear-resistant and flame retardant tape 7, sweeper 8, driving device 9, lower roller

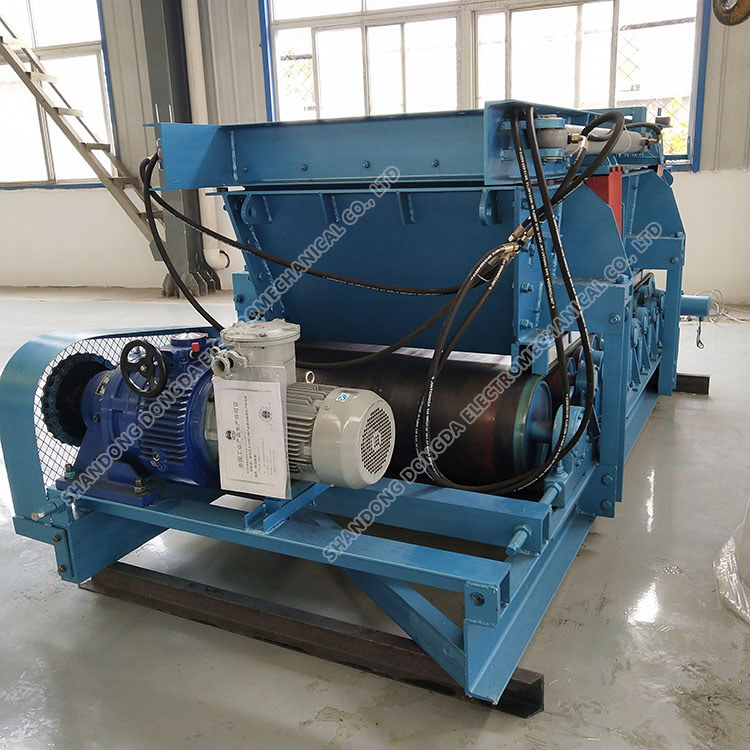

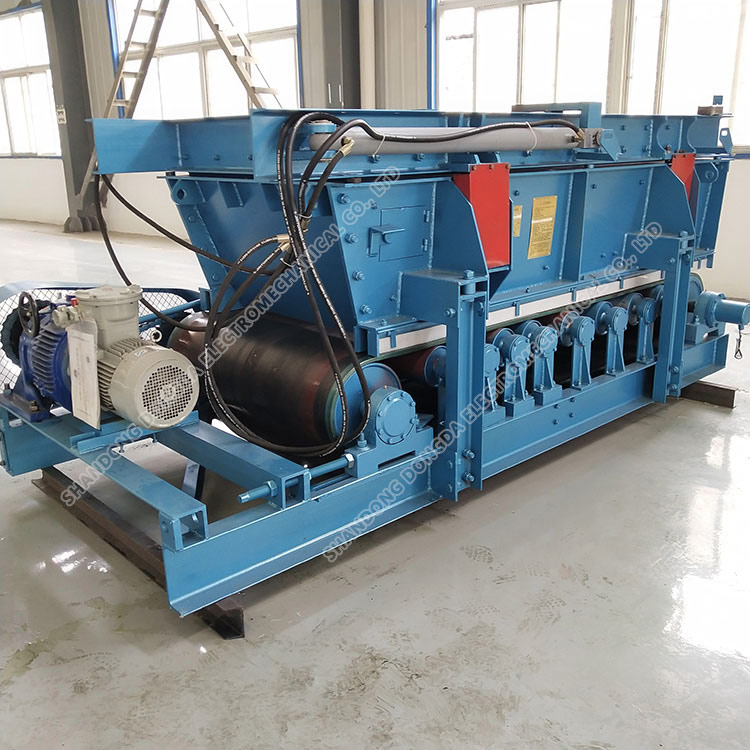

Real picture of GLD2200/7.5/S weighing coal feeder
