Introduction to BQG320/0.3 Pneumatic diaphragm pump

Bqg320/0.3 Pneumatic diaphragm pump adopts, absorbs and improves the most advanced pneumatic diaphragm pump production process and technology in the world. This product is specially designed for coal mine. It has all the functions of traditional submersible electric pump, mud pump, impurity pump and flexible shaft pump. The key is to completely solve the safety problem of traditional pumps. The products can provide high delivery speed under low pressure and are compatible with a wide range of materials. The pump has anti-stall design and modular pneumatic motor fluid part.

Bqg320/0.3 Pneumatic diaphragm pump technical parameters

Model: BQG320/0.3

Rated flow rate L/min: 320

Discharging pressure MPa: 0.3

Rated air pressure MPa: 0.55

Maximum gas consumption m3/min: 0.95

Maximum diameter of passing particle mm: 9

Length × width × height (mm) : 536×477×888

Weight (kg) : 50.4

Pipe diameter (in inches) : 3

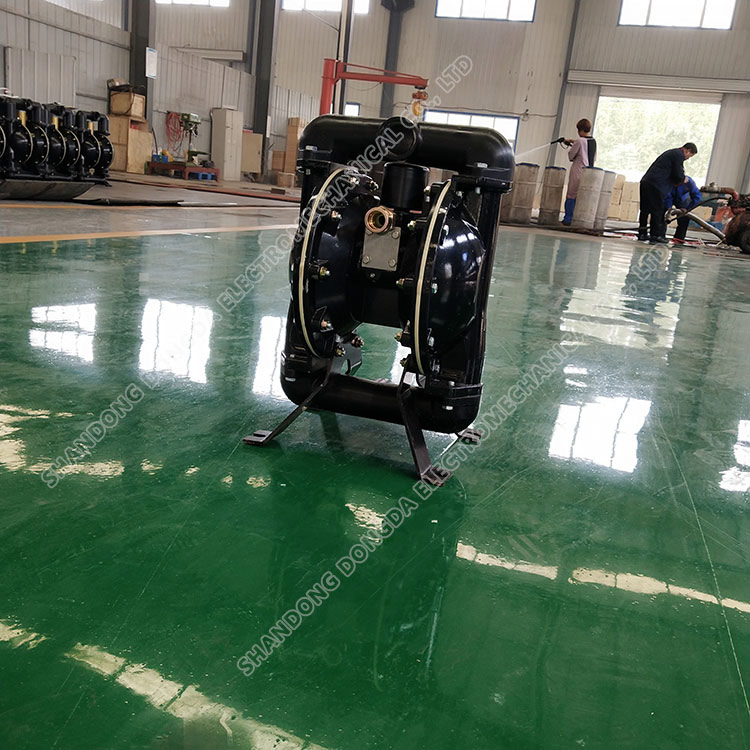

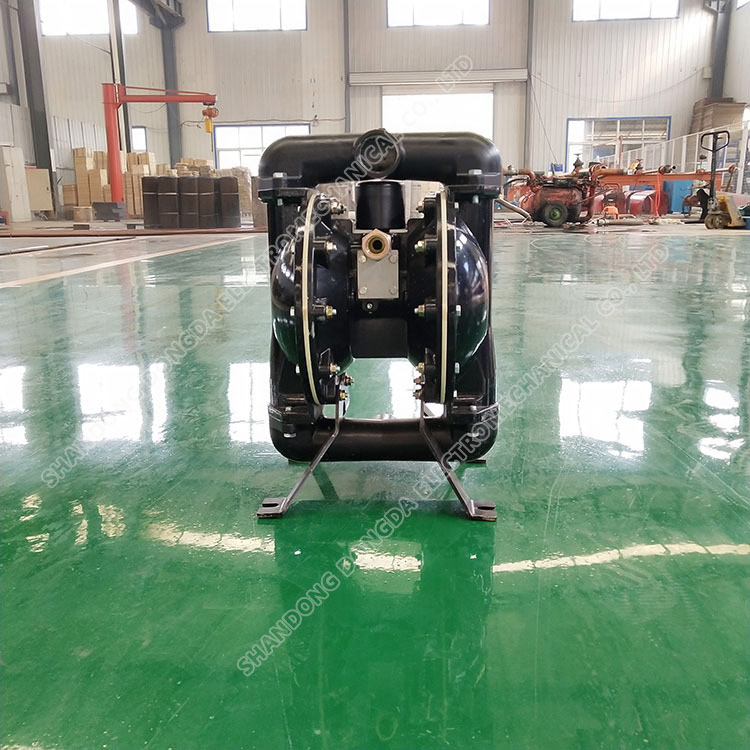

Bqg320/0.3 Pneumatic diaphragm pump physical drawing
