Introduction of GEJ30 deviation sensor
The deviation sensor is installed on the brackets on both sides of the belt. In normal times, the belt does not contact the deviation contact rod, and the two terminals of the sensor are not connected. When the belt deviates and touches the deviating contact rod and pushes the contact rod to deviate from the normal position of 30°±3°, the two terminals of the sensor are connected. When the belt is reset and the deviating contact rod automatically returns to 15°±3°, the two terminals of the sensor should be disconnected.
Technical parameters of GEJ30 deviation sensor
Mine essential safety type, explosion-proof sign "ExibI"
External dimension: 350mm×165mm×65mm;
Mass: 3kg.
Angle of action 30±3°
Action force of touch bar: 20 ~ 100N.
Reset Angle 15°
The limit Angle of the rod rotation is not less than 70°
Contact resistance is not greater than 0.1 Ω closed contact,
Wibration, shock, and no greater than 0.2 Ω after life test.
With high and low level output, 200-1000Hz frequency and relay contact output functions

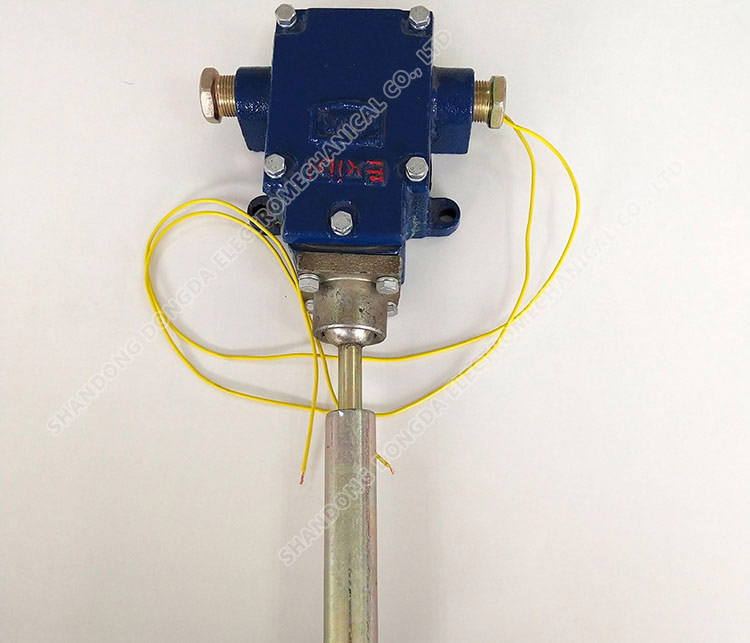

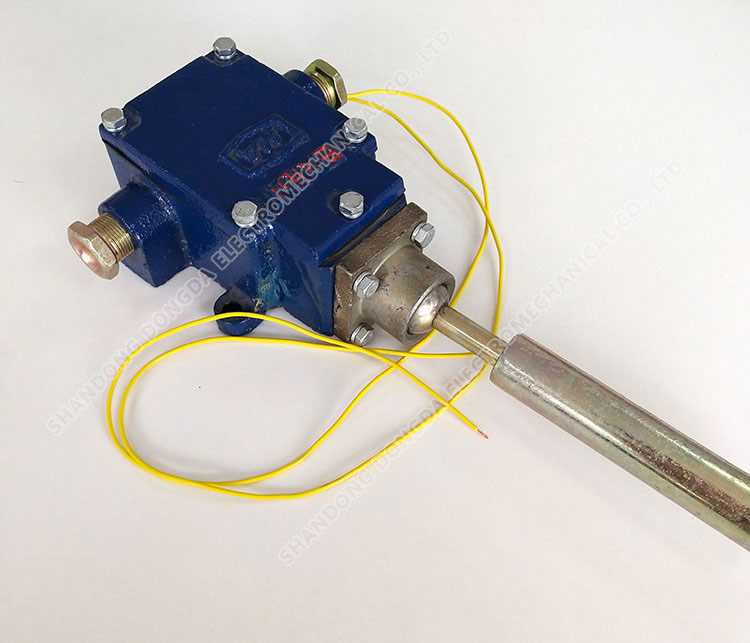

Real picture of GEJ30 deflector
