L42.5 Roller can ear

L42.5 Introduction to roller can ear

L42.5 Roller can lug is a combined steel can channel guide device, which is mainly composed of roller, bracket, spring buffer device, base, etc. The spring buffer device consists of adjusting sleeve, adjusting screw, nut, disc spring shaft, guide sleeve, cap, setting screw, disc spring, flat key, cylinder and so on.

L42.5 List of wearing parts for roller can ear

Roller diameter mm 250 bearing 30310 Polyurethane wheel mm outer diameter × inner diameter × width 250×148×90 sealing ring inside 12× 2.65

Roller diameter mm 300 bearing 30311 polyurethane wheel mm outer diameter × inner diameter × width narrow wheel 300×182×89 wide wheel 300×179×165 sealing ring 12× 2.65

Bearing 30313 polyurethane wheel mm outer diameter × inner diameter × width narrow wheel 350×192×106 wide wheel 350×196×165 sealing ring 12× 2.65

As the actual situation on site is different, we suggest that when you choose and order the equipment model and specification, you should describe your requirements in detail and fully communicate with the relevant professional and technical personnel, indicating the model and quantity. If you want special supplies, please attach specific written instructions.

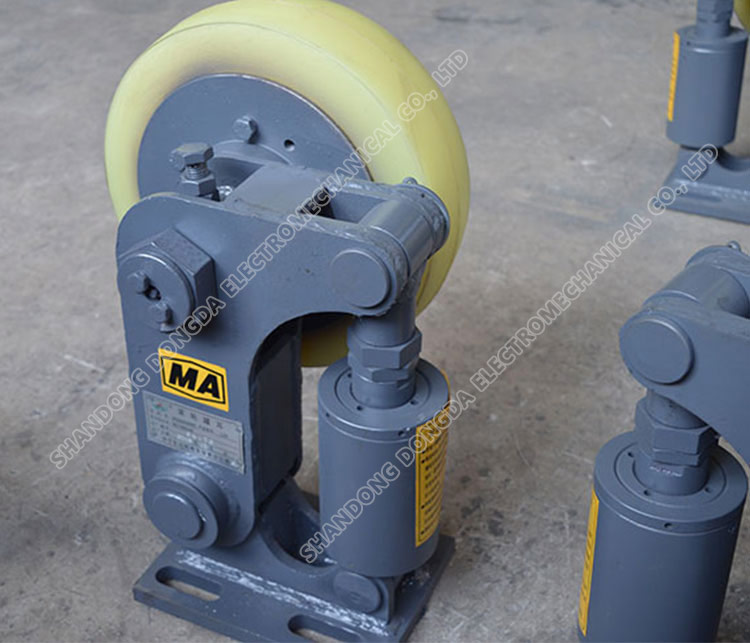

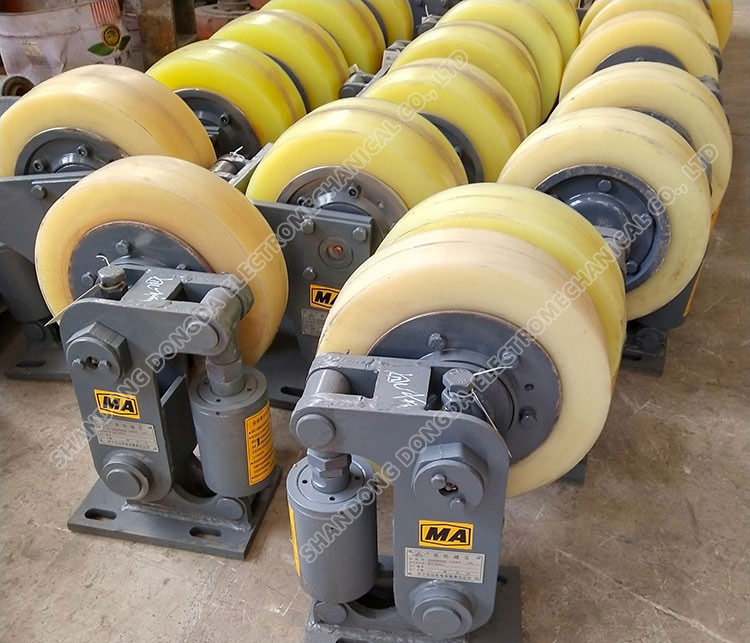

L42.5 Real picture of roller can lug
