Overview of GLD800/5.5/S belt type coal feeder

GLD800/5.5 /S belt type coal feeder is a new type of coal feeder developed for large production system of high yield and high efficiency mine and the current feeder can no longer meet the requirements of coal mine production. Gld800/5.5 /S belt type coal feeder is based on K type reciprocating and vibration type coal feeder, which changes the reciprocating movement mechanism into conveyor belt type mechanism, thus changing the feeding movement from sliding friction to rolling friction. The friction coefficient is greatly reduced, so that the power consumption is also significantly reduced. The feeding mode is changed from intermittent feeding to continuous feeding, and the feeding quantity is dynamically and continuously variable, so that the feeding system can meet the requirements of high efficiency, energy saving and environmental protection.

GLD800/5.5 /S armour belt coal feeder technical parameters

Specification: GLD800/5.5/S

Power kw: 5.5

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Maximum feed t/h: 800

Maximum band speed m/s: 0.75

Weight: 3500

Failure treatment of GLD800/5.5/S armored coal feeder fault

1. Abnormal sound

2. Fever in the exercise area

3. The drum, the driving drum and the reversing drum are stuck and cannot move

Cause analysis

1. All connections are loose

2. Bearing is short of lubricating oil or damaged

3. Bearing damage

Elimination method

1. Check and tighten all connectors

2. Timely oiling or replacement of bearings

3. Replace spare drum components or disassemble inspection components and replace bearings

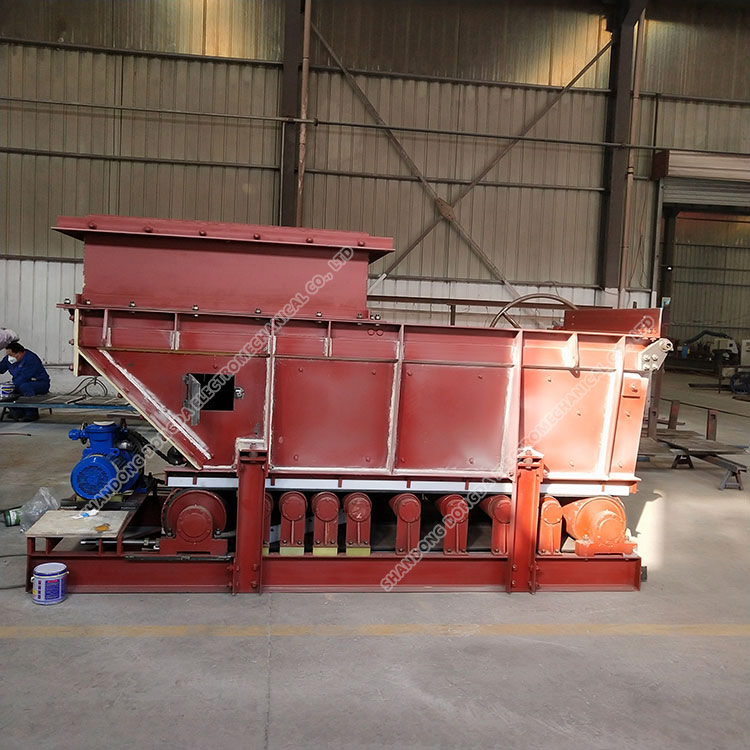

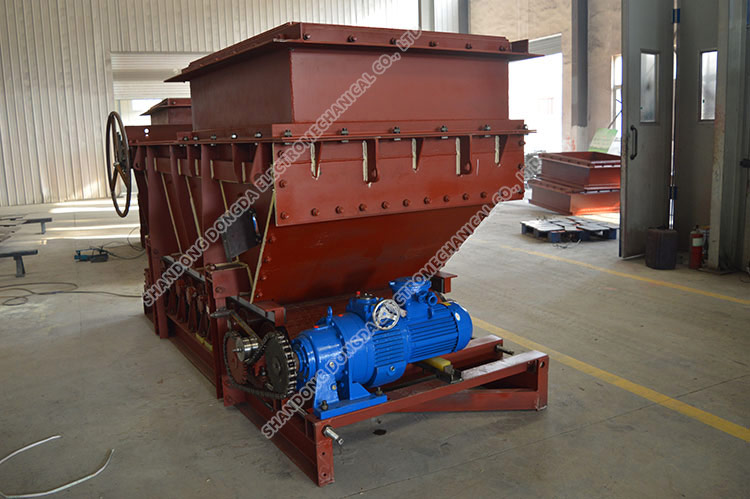

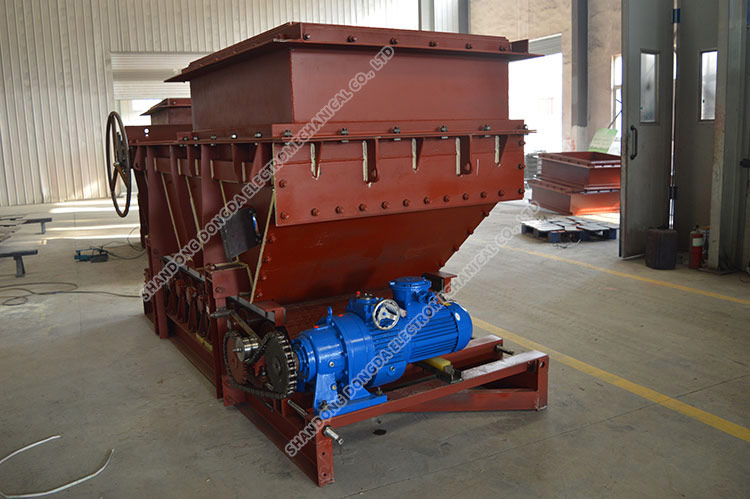

GLD800/5.5 /S Physical drawing of armored coal feeder
