GLD800/5.5 /B belt feeder

The main characteristics of GLD800/5.5/B belt coal feeder are as follows

1. Large feeding volume, small volume, light weight, convenient underground transportation and installation, can greatly reduce the amount of shaft engineering;

2. Large feeding adjustment range, easy adjustment (stepless speed regulation);

3. The moving part has low working resistance, low power consumption and long working life of the moving parts;

4. Smooth operation, low noise, environmental protection;

5. Parts are universal, easy to install and maintain.

Gld800/5.5 /B belt coal feeder technical parameters

Specification MODEL GLD800/5.5/B

Power kw5.5

Voltage V380 ~ 660

Suitable for environment explosion-proof type

Maximum feed t/ H800

Maximum band speed m/s0.75

External dimension mm 3280x1420x1718

Weight kg3500

Commissioning and operation of GLD800/5.5/B belt coal feeder

After the feeder is installed and in place, start the motor without load to make the feeder run without load. If no abnormal phenomenon is found within 20 minutes during empty operation, stop to check the temperature rise of motor, reducer, roller and supporting roller components. If everything is normal, check again and tighten relevant bolts and nuts, then restart and slowly open the bunker to make coal flow into the feeder from small to large, so that the feeder can be put into normal operation.

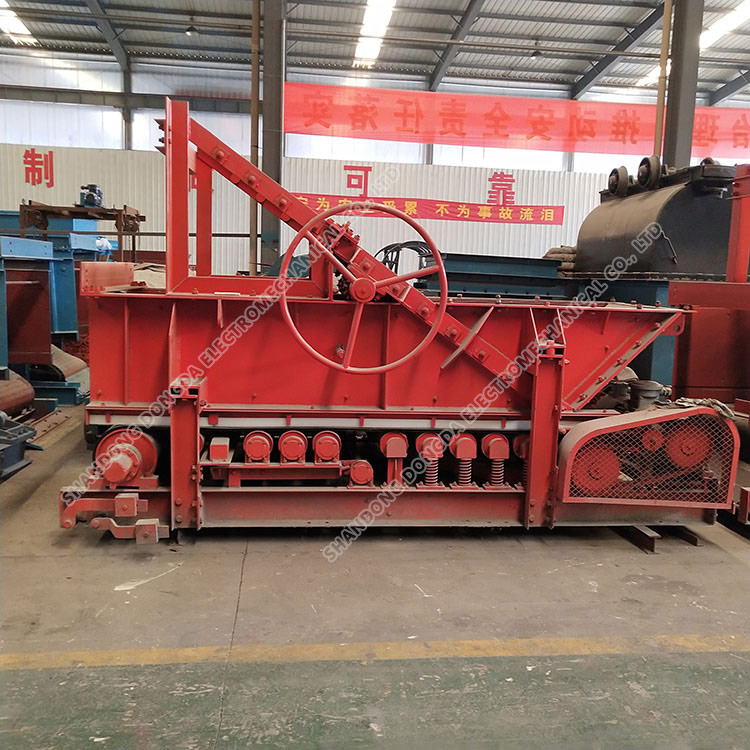

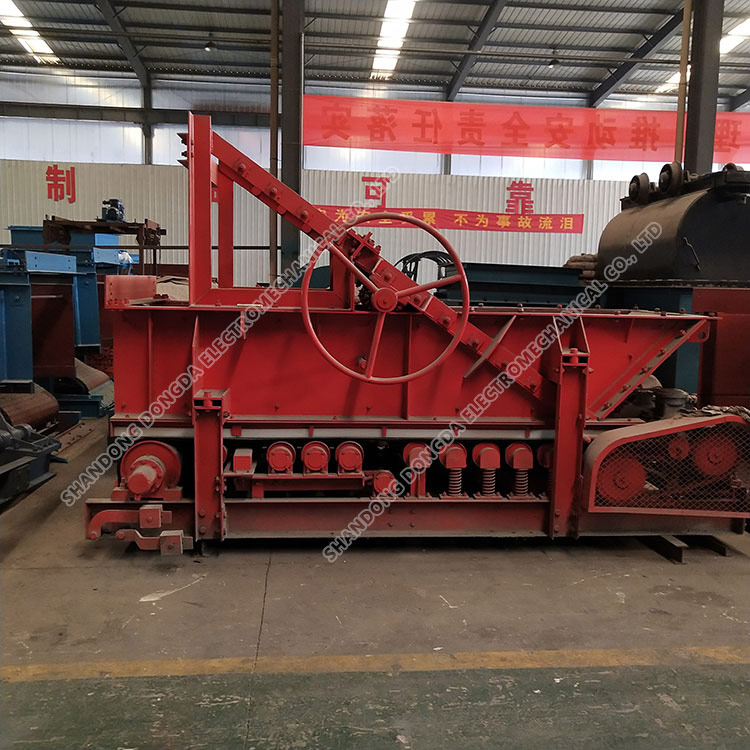

Gld800/5.5 /B Belt coal feeder
