Reciprocating feeder has the advantages of uniform feeding, stable feeding, adjustable feeding amount, small shape height, simple structure, convenient adjustment and installation
Glw225/4 /S Reciprocating feeder
Reciprocating feeder has the advantages of uniform feeding, stable feeding, adjustable feeding amount, small shape height, simple structure, convenient adjustment and installation, reliable operation and long service life.
Main structure and working principle of GLW225/4/S reciprocating feeder
This series feeder consists of chassis, transmission platform, funnel, gate, connecting rod and the roller and so on, its transmission principle: when the motor start, the elastic coupling, gear reducer, crank connecting rod device drag tilting chassis on the roller as a straight line reciprocating movement, the material evenly discharged to the transport machinery, or other screening equipment. This feeder has a variety of combination types, such as funnel, valve with adjustment and funnel, gate without adjustment, etc. When conveying hard materials, consider adding a liner at the bottom of the tank.
Glw225/4 /S Reciprocating feeder overhaul and maintenance
1. Before the feeding machine is transported, enough raw coal shall be stored in the bunker to avoid direct impact on the floor when the coal is loaded into the bunker.
2. After monthly continuous work, check whether the parts are loose and other abnormal phenomena. If any abnormal phenomenon occurs, repair immediately.
3. The bottom liner in direct contact with the coal shall be repaired or replaced if its thickness is more than half of the original thickness.
4. All rotating parts shall be oiled once a month and checked once a quarter to observe the damage degree of bearings and seals and replace them in time when problems are found.
5. Maintenance of major components:
(1) Reduction gear
Check every six months, and clean or replace the lubricating oil on the rolling bearings and housing.
(2) Electric motors
According to the motor maintenance requirements.
Users' attention: lubricate moving parts regularly, check the running condition of each part, find out the reason in time and deal with the abnormal situation, and notify the manufacturer to deal with it if necessary; Close the gate when the empty warehouse is being repaired.

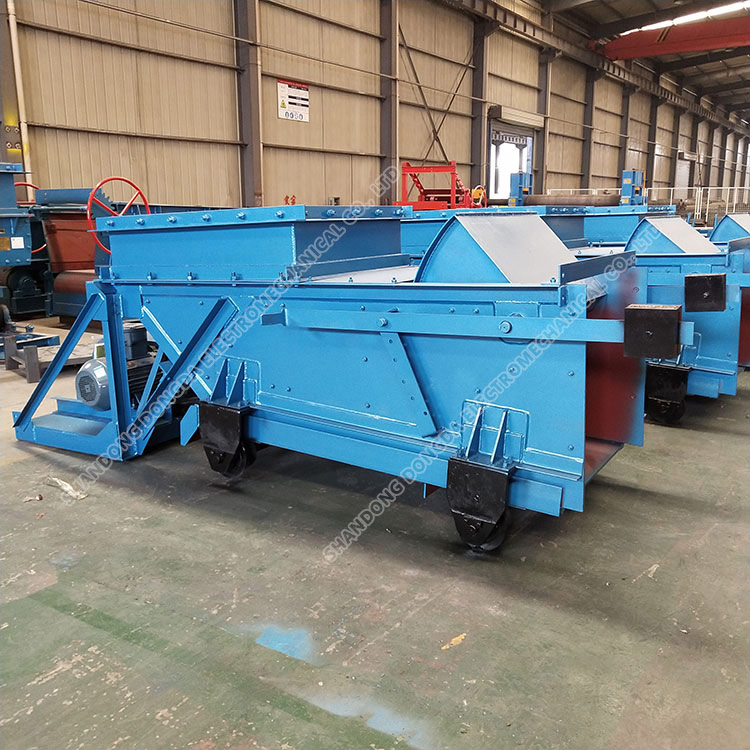

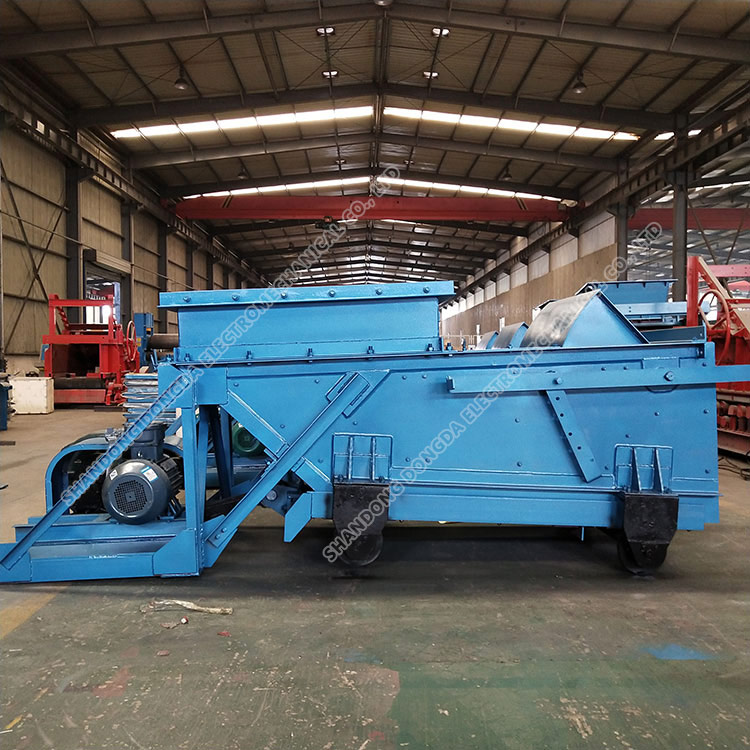

Glw225/4 /S Reciprocating feeder physical drawing
