GLD1500/7.5 /S Belt type coal feeder product introduction

GLD armour to machine is widely used in coal, metallurgy, electric power and other industries a variety of feed bin, to turn the continuous feeding way, according to user need not stop can be adjusted (manual adjustment or hydraulic cylinder adjustment), a bring coal feeding system can meet the requirements of high efficiency, energy saving, environmental protection, more durable than belt feeder.

In addition to the production of GLD series standard a to the coal machine, but also the production of non-standard, elongated a to the coal machine.

GLD1500/7.5 /S Armour belt coal feeder technical parameters

Specification: GLD1500/7.5/S

Power: 1.5 kw

Maximum feed t/h: 1500

Maximum band speed m/s: 0.98

Voltage V: 380 ~ 660

Adaptability to environment: explosion-proof type

Weight: 4000

GLD1500/7.5 /S Belt type coal feeder overhaul and maintenance

1. When the feeder is in use, enough coal should be stored in the bunker to avoid direct impact on the floor when the coal is loaded into the bunker.

2. Check whether the parts are loose or abnormal after monthly continuous work.

3. The transmission parts shall be checked every six months in a row. The parts of the pull rod must be kept in normal coordination.

4. All rotating parts shall be oiled once a month and checked once a quarter to observe the damage degree of bearings and seals and replace them in time when problems are found.

5. Maintenance of major components:

(1) Reduction gear

Check every six months, and clean or replace the lubricating oil on the rolling bearings and housing.

(2) Electric motors

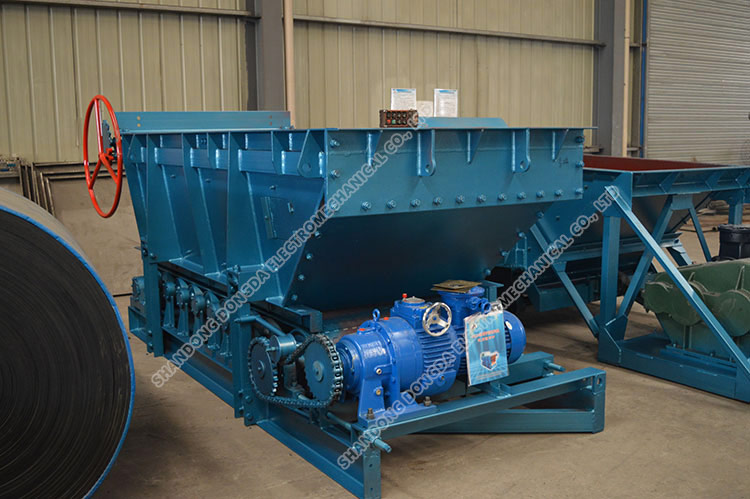

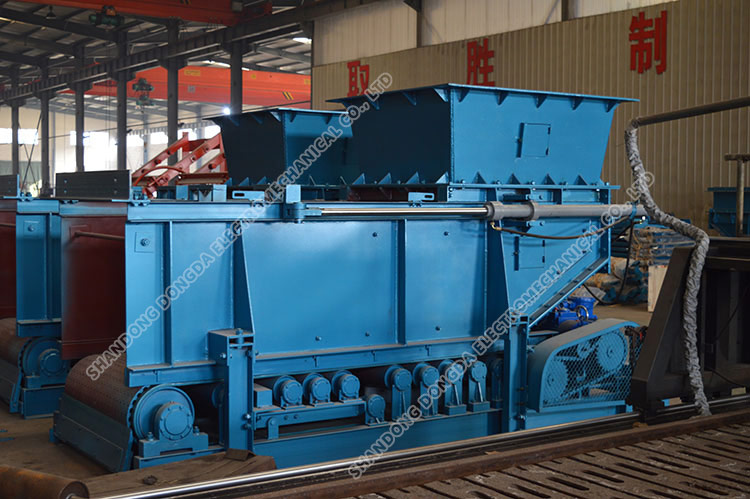

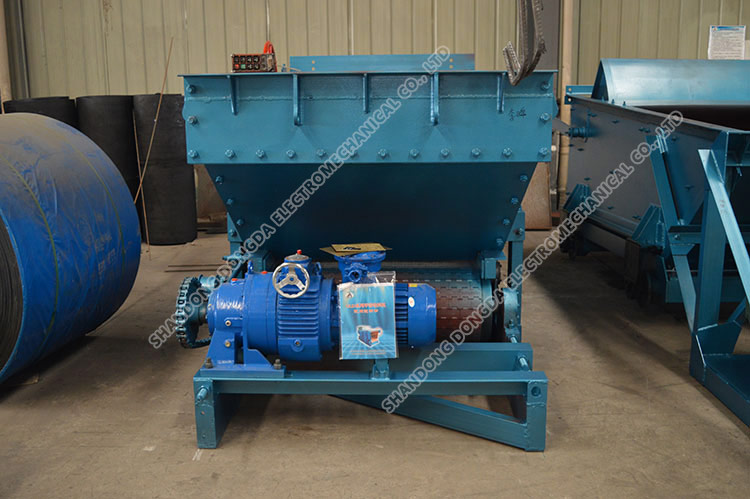

GLD1500/7.5 /S Physical drawing of a belt coal feeder
