Overview of FQW60-20/K Mine pneumatic submersible pumps

Fqw60-20 /K mine pneumatic submersible pump adopts the mechanical product of coaxial connection between rotor and pump body, with vertical structure and lower pump type.

Mine pneumatic submersible pump is suitable for drainage work in places with dangerous explosion of gas and coal dust. It can be widely used in any operation surface of coal mine to transport underground water containing coal powder and sediment particles. It can be used safely and reliably and effectively improve the air quality on site.

Fqw60-20 /K mine pneumatic submersible pump working environment

A) The surrounding air contains gas and coal dust;

B) The air pressure is (0.4 ~ 0.7) MPa;

C) The pH value of the water is within the range of 6 ~ 8;

D) The volume ratio of solid impurities in water shall not exceed 2%;

E) Working environment temperature (5 ~ 40) quality.

Technical parameters of FQW60-20/K mine pneumatic submersible pump

Water pump model FQW60-20/K

Rated flow rate m /hF 60

Rated head m 20

Working pressure MPa 0.5

The gas consumption is m /min 8

The quality of 38 kg

Size 450 mm 610 x Ф shape

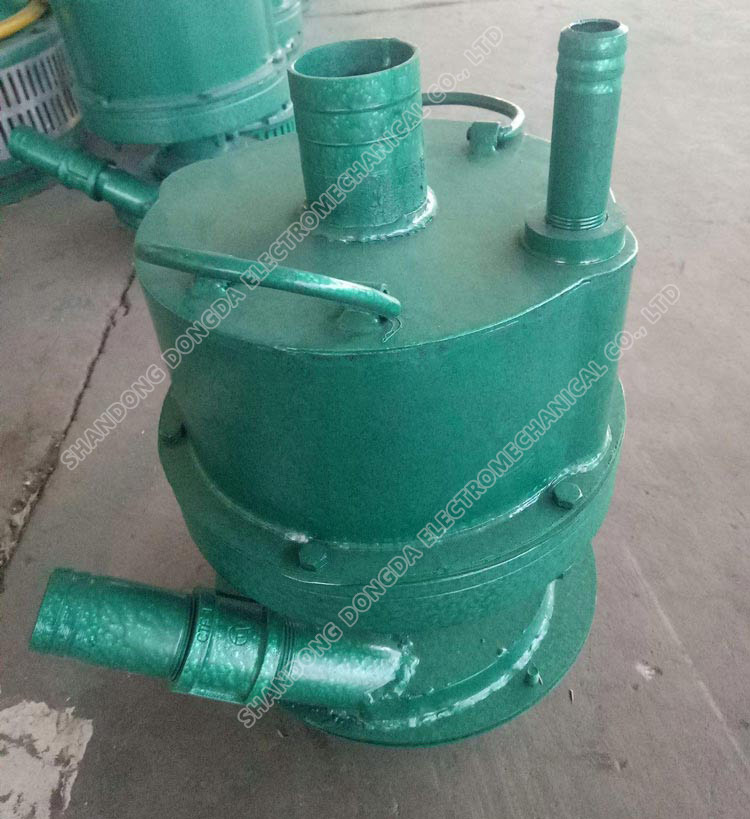

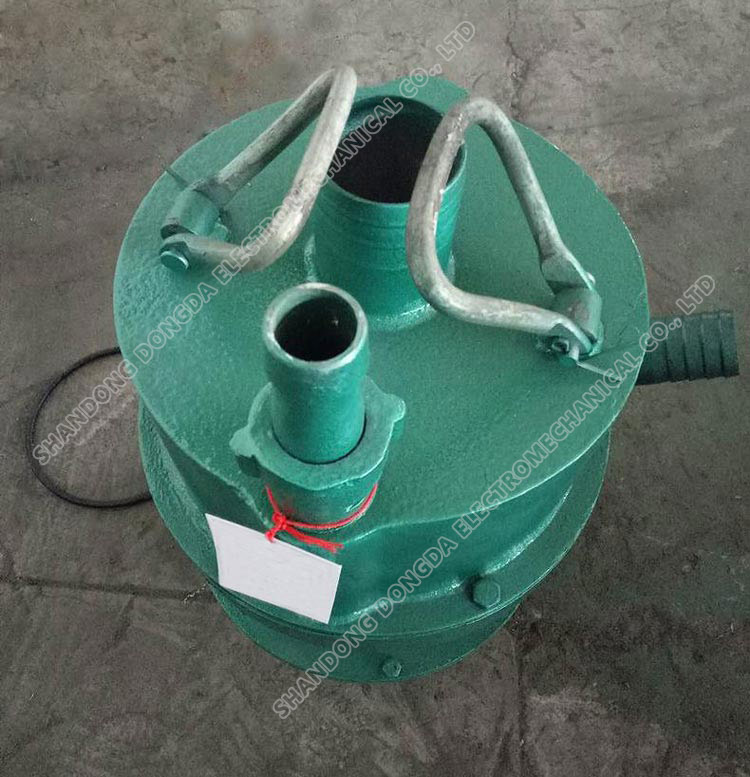

Fqw60-20 /K Mine pneumatic submersible pump physical drawing
