Qyf25-15 pneumatic desilting pump is driven by compressed air, mainly composed of the main part, control system and vacuum suction module, etc. QYF series pneumatic desilting and s...
Qyf25-15 Pneumatic desilting sewage pump main features
Qyf25-15 pneumatic desilting pump is driven by compressed air, mainly composed of the main part, control system and vacuum suction module, etc. QYF series pneumatic desilting and sewage pump is suitable for cleaning a large amount of coal slime deposited in water silo in underground coal mine. Because there is no reliable equipment to clean coal slime, it not only brings a lot of inconvenience to normal production of coal mine, but also causes a great waste of resources. And we developed sewage pump has realized the coal mine water warehouse of coal water mixture good efficient processing, thoroughly remove the artificial dig water storehouse of heavy labor, at the same time, reduced the number of newly built underground water warehouse, not only improve the comprehensive economic benefits of the mine water CangQing dig, and implement the environment management and protection, save time and effort, has extensive practicability.
Qyf25-15 Pneumatic desilting and sewage pump product service conditions
A) The desilting pump is submerged by the inlet of the suction pipe.
B) The temperature of conveying medium shall not exceed 40℃.
C) Working environment temperature (5 ~ 40) ℃.
D) The PH of the conveying medium is within the range of 4 ~ 10.
E) The diameter of the solid particles shall not exceed 20mm.
F) Applicable air pressure range is 0.60MPa ~ 0.70MPa.
Qyf25-15 Pneumatic desilting and sewage pump product technical parameters
Flow rate m /h: 25
Head M: 15
Gas consumption m /min: 10.5
Working pressure MPa: 0.55
Suction cycle: 8s
Emission cycle: 8s
Mounting dimensions (length × width × height) mm: 1830×885×965

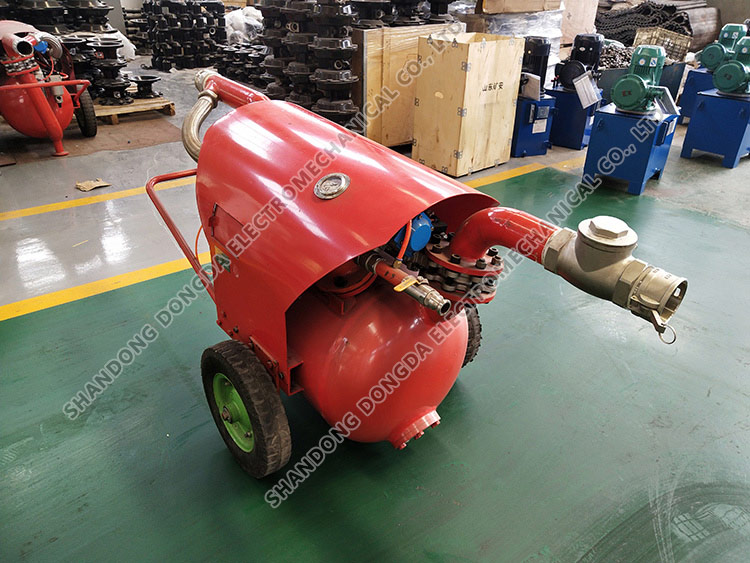

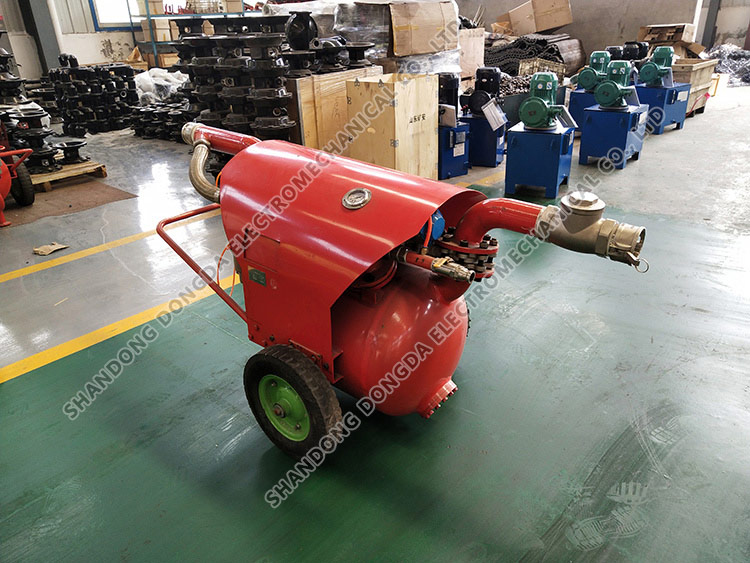

Qyf25-15 Pneumatic desilting sewage pump product picture
