Ah0.6/12 Introduction of mine safety button box
Mine this type button box is put button to focus on a box, convenient for many things, can go to the centralized control buttons, see the product size, AH0.6/12 mine this type button box is according to the MT209-1990 "the coal mine communication, detection, control with general technical requirements of electrical and electronic products required to design and manufacture, mainly used in the coal mine automatic control of pneumatic equipment.
Ah0.6/12 Structural features of mine safety pushbutton box
1. Simple structure and convenient connection; Low level is output in normal state, and high level is output when the button is pressed after power is switched on.
2. It can be connected with the control switch device, damper device and sports car protection device to realize automatic control.
Technical parameters of mine safety control button
Working voltage: DC12V Working current: ≤5mA
This security parameter: Ui: DC 12.5V Ii:5mA
The button is normally open

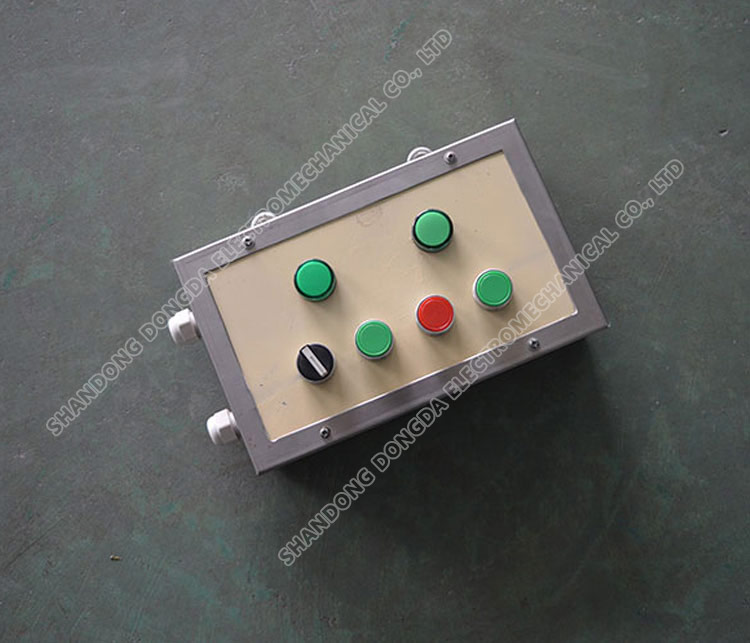

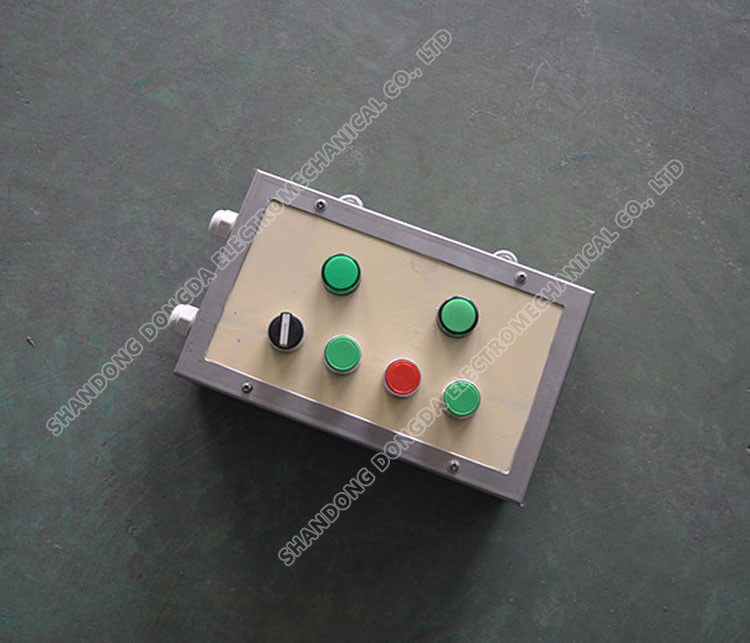

Ah0.6/12 Physical drawing of mine safety pushbutton box
